ໃນຖານະເປັນຜູ້ຜະລິດມືອາຊີບໃນປະເທດຈີນ, Comewill ຕ້ອງການໃຫ້ທ່ານມີຄຸນນະພາບສູງ LZZBJ 9-10A ຫມໍ້ແປງປະຈຸບັນປະຕິບັດຕາມມາດຕະຖານ IEC ແລະມາດຕະຖານການຫັນປ່ຽນໃນປະຈຸບັນ GB1208-2006.
ລະດັບ insulation: 12/42/75kV
ປັດໄຈການໂຫຼດພະລັງງານ: cosΦ=0.8 (lagging)
ລະດັບຄວາມຖີ່: 50Hz
ການປະເມີນຄ່າກະແສໄຟຟ້າຮອງ: 5A, 1A
ລະດັບການໄຫຼບາງສ່ວນ: ມັນຕອບສະຫນອງຄວາມຕ້ອງການຂອງມາດຕະຖານ GB5583-85, ມີການໄຫຼບາງສ່ວນບໍ່ເກີນ 20pC.

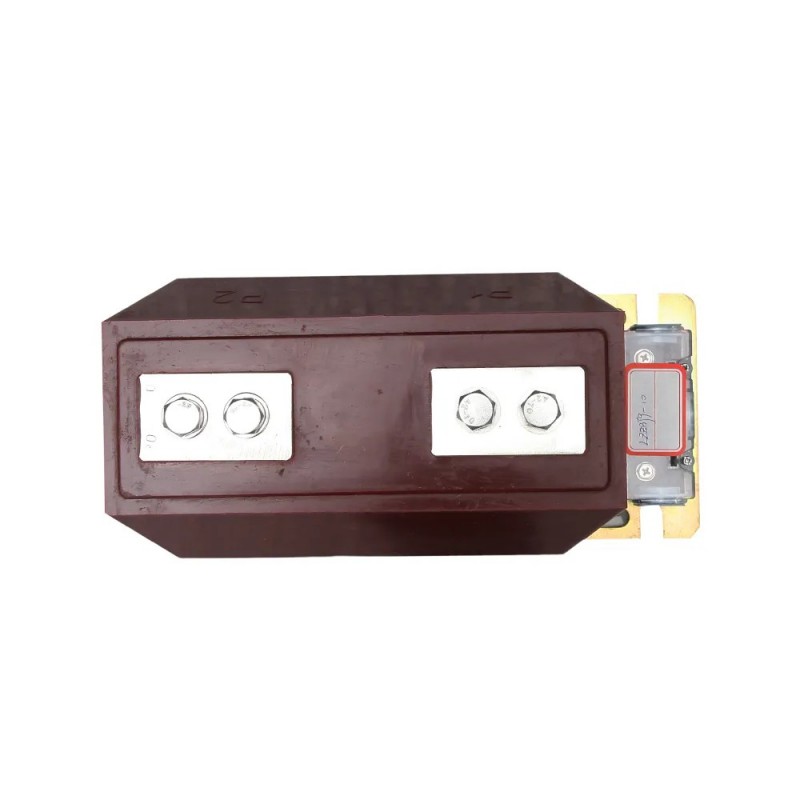

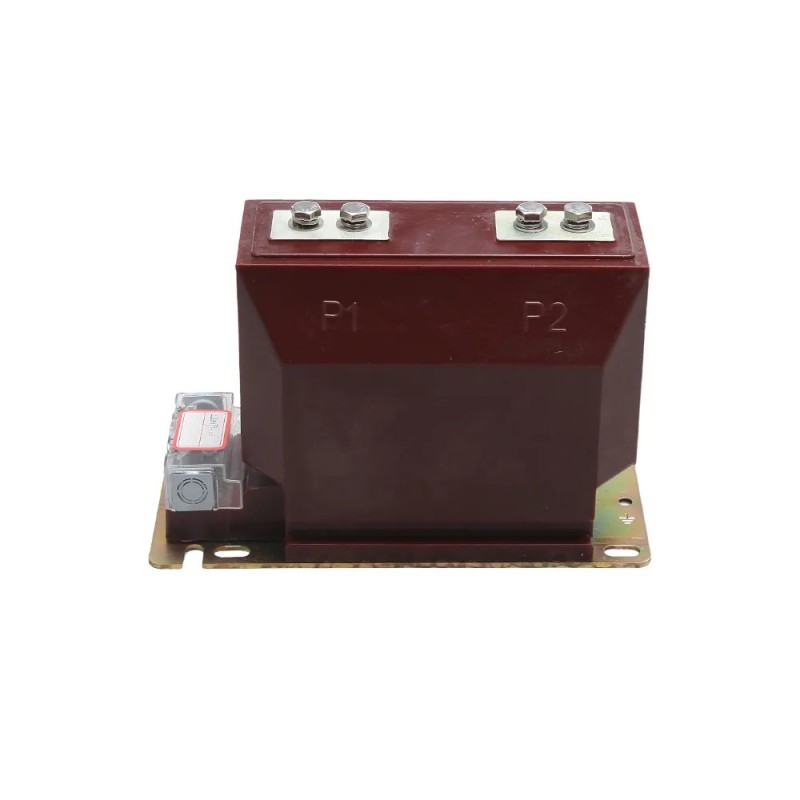

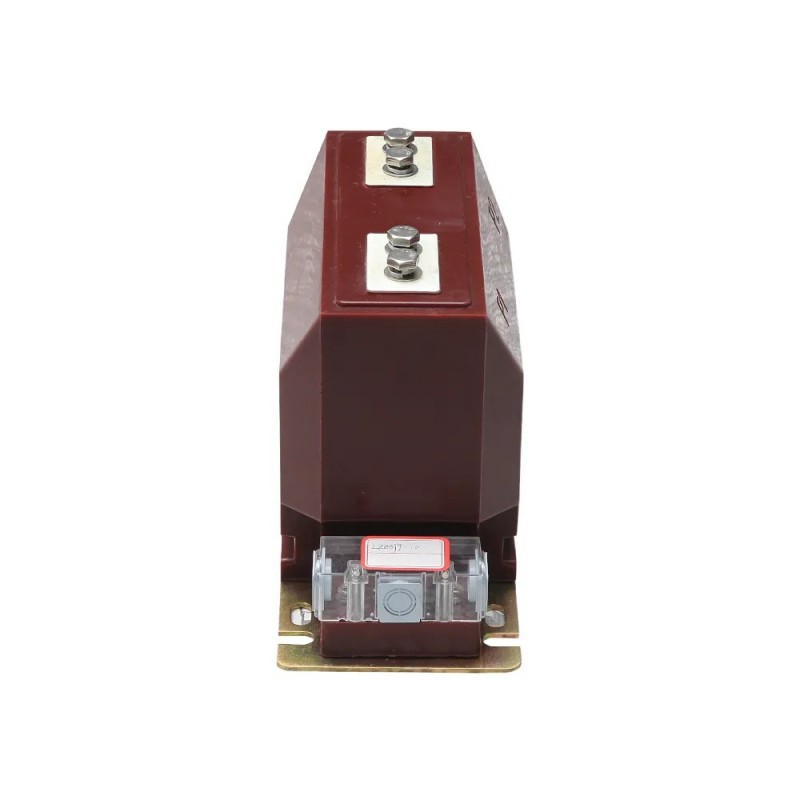

ໝໍ້ແປງໄຟຟ້າປະຈຸບັນ LZZBJ 9-10A ນີ້ຮັບຮອງເອົາໂຄງສ້າງປະເພດເສົາ. ມັນມີລັກສະນະການຫລໍ່ຢາງ epoxy ເຕັມທີ່ປິດ, ສະຫນອງການຕໍ່ຕ້ານມົນລະພິດທີ່ດີເລີດແລະການຕໍ່ຕ້ານຄວາມຊຸ່ມຊື່ນ, ແລະຍັງເຫມາະສົມສໍາລັບເຂດຮ້ອນ.
ໝໍ້ແປງບໍ່ຈຳເປັນຕ້ອງມີການບຳລຸງຮັກສາພິເສດ, ພຽງແຕ່ທຳຄວາມສະອາດຂີ້ຝຸ່ນພື້ນຜິວຢ່າງເປັນປົກກະຕິ.
ດ້ວຍການຖອກໃສ່ຢາງ epoxy ແບບປິດເຕັມ, ຫມໍ້ແປງປະຈຸບັນມີຂະຫນາດກະທັດຮັດແລະຄຸນນະພາບທີ່ເຊື່ອຖືໄດ້. ມັນສາມາດປັບຕົວກັບສະຖານທີ່ຕິດຕັ້ງໃດໆແລະສາມາດຕິດຕັ້ງໄດ້ໃນທິດທາງໃດກໍ່ຕາມ.
| ປະເພດ | LZZBJ9-10C1 | LZZBJ9-10C2 | ||||||||||||
| ຫ້ອງຮຽນຄວາມຖືກຕ້ອງ | ໃຫ້ຄະແນນຜົນຜະລິດຂັ້ນສອງ | ກະແສຄວາມຮ້ອນ 1 ວິນາທີ | ປະຈຸບັນໄດນາມິກ | ຫ້ອງຮຽນຄວາມຖືກຕ້ອງ | ໃຫ້ຄະແນນຜົນຜະລິດຂັ້ນສອງ | ກະແສຄວາມຮ້ອນ 1 ວິນາທີ | ປະຈຸບັນໄດນາມິກ | |||||||
| 0.2/0.2ສ | 0.5/0.5ສ | 10P10 | 10P15 | 0.2/0.2ສ | 0.5/0.5ສ | 10P10 | 10P15 | |||||||
| 5 | 0.2S/10P ,0.2/10P ,0.2S/0.5 ,0.2/0.5 ,0.5S/10P ,0.5/10P | 10 | 10 | 15 | 10 | 2 | 5 | 0.2S/10P ,0.2/10P ,0.2S/0.5 ,0.2/0.5 ,0.5S/10P ,0.5/10P | 10 | 20 | 20 | 20 | 0.5 | 1.25 |
| 10 | 4 | 10 | 1 | 2.5 | ||||||||||
| 15 | 6 | 15 | 1.5 | 3.75 | ||||||||||
| 20 | 8 | 20 | 2 | 5 | ||||||||||
| 30 | 12 | 30 | 3 | 7.5 | ||||||||||
| 40 | 16 | 40 | 4 | 10 | ||||||||||
| 50 | 20 | 50 | 5 | 12.5 | ||||||||||
| 75 | 32 | 60 | 7.5 | 18.75 | ||||||||||
| 100 | 45 | 112.5 | 21 | 52.5 | ||||||||||
| 150 | 31.5 | 80 | ||||||||||||
| 200 | ||||||||||||||
| 300 | 15 | 45 | 112.5 | |||||||||||
| 400 | ||||||||||||||
| 500 | 15 | 63 | 130 | |||||||||||
| 600 | 63 | 130 | ||||||||||||
| 800 | 20 | |||||||||||||
| 1000 | 30 | |||||||||||||
| 1200 | 80 | 160 | 80 | 160 | ||||||||||
| 1500 | 30 | 40 | 30 | 100 | 160 | |||||||||
| 2000 | 60 | 30 | ||||||||||||
| 2500 | ||||||||||||||
| 3000 | ||||||||||||||
| 3150 | ||||||||||||||
| ປະເພດ | LZZBJ9-10C1 | LZZBJ9-10C2 | ||||||
| ຫ້ອງຮຽນຄວາມຖືກຕ້ອງ | ໃຫ້ຄະແນນຜົນຜະລິດຂັ້ນສອງ | ກະແສຄວາມຮ້ອນ 1 ວິນາທີ | ປະຈຸບັນໄດນາມິກ | ຫ້ອງຮຽນຄວາມຖືກຕ້ອງ | ໃຫ້ຄະແນນຜົນຜະລິດຂັ້ນສອງ | ກະແສຄວາມຮ້ອນ 1 ວິນາທີ | ປະຈຸບັນໄດນາມິກ | |
| 10-15-20 | 0.2S/0.2S/0.2S/10P10,0.2/ 0.2/0.2/10P10,0.5/ 0.2/ 0.2/10P10, 0.5/0.5/0.5/10P10 , 0.5S/0.5S/0.5S/10 | 10/10/15/15 , 10/10/15/15 ,10/10/15/15 ,10/10/15/15 ,10/10/15/15 | 2.7 | 4.5 | 0.2S/0.2S/0.2S/10P10,0.2/ 0.2/0.2/10P10,0.5/ 0.2/ 0.2/10P10, 0.5/0.5/0.5/10P10 , 0.5S/0.5S/0.5S/10 | 10/10/15/20,10/1 | 0.5 | 1.25 |
| 15-20-30 | 4.2 | 6.6 | 0/15/20,10/10/1 | 1 | 2.5 | |||
| 20-30-40 | 6 | 9 | 5/15,10/10/15/ | 1.5 | 3.75 | |||
| 30-40-50 | 9 | 11.5 | 20,10/10/15/20 | 2 | 5 | |||
| 40-50-75 | 11.3 | 16.5 |
|
3 | 7.5 | |||
| 50-75-100 | 16.8 | 22 |
|
4 | 10 | |||
| 75-100-150 | 24 | 33 |
|
5 | 12.5 | |||
| 100-150-200 | 33.6 | 45 |
|
7.5 | 18.75 | |||
| 150-200-300 | 45 | 63 |
|
21 | 52.5 | |||
| 200-300-400 | 45 | 80 |
|
31.5 | 80 | |||
| 300-400-500 | 45 | 100 |
|
45 | 112.5 | |||
| 400-500-600 | 0.5/0.2/0.2/10P10 ,0.5/0.5/0.5/10P10 ,0.2S/0.2S/0.2S/10P10 ,0.5S/0.5S/0.5S/10P10 ,0.5/0.2/0.2/10P | 15/15/20/25 , 15/15/20/25 ,15/15/20/25 ,15/15/20/25 ,15/15/20/25 | 80 | 130 | 0.5/0.2/0.2/10P10 ,0.5/0.5/0.5/10P10 ,0.2S/0.2S/0.2S/10P10 ,0.5S/0.5S/0.5S/10P10 ,0.5/0.2/0.2/10P | 15/15/20/30,1 | 63 | 130 |
| 500-600-800 | 5/15/20/30,15/15/ | 63 | 130 | |||||
| 800-1000-1200 | 20/30,15/15/20/ | 80 | 160 | |||||
| 1200-1500-2000 | 30,15/15/15/30 | 100 | 160 | |||||
| 1500-2000-2500 |
|
100 | 160 | |||||
| 2000-2500-3000 |
|
100 | 160 | |||||
| ປະເພດ | LZZBJ9-10C1 | LZZBJ9-10C1 | ກະແສຄວາມຮ້ອນ 1 ວິນາທີ | ປະຈຸບັນໄດນາມິກ | ||
| ໃຫ້ຄະແນນປັດຈຸບັນຕົ້ນຕໍ | ລະດັບຄວາມຖືກຕ້ອງແລະຜົນຜະລິດການຈັດອັນດັບສູງສຸດ | ລະດັບຄວາມຖືກຕ້ອງແລະຜົນຜະລິດການຈັດອັນດັບສູງສຸດ | ||||
| 5,10,15,20 | 0.2/0.5/10P10,0.5/0.5/10P10 | 10/20/10,20/20/1 | 0.2/0.5/10P10,0.5/0.5/10P10 | 10/20/10,20/20/10 | 100Iln | 205Iln |
| ,30,40,50,75 | ,0.5/10P10/10P10 | 0,20/10/10 | ,0.5/10P10/10P10 | ,20/15/15 | ||
|
|
|
|
|
|
||
| 100 | 0.2/0.5/10P10,0.5/0.5/10P1 | 10/20/10,20/20/1 | 0.2/0.5/10P10,0.5/0.5/10P10 | 10/20/10,20/20/10 | 21 | 52.5 |
| 0,0.5/10P10/10P10 | 0,20/10/10 | ,0.5/10P10/10P10 | ,20/15/15 | |||
|
|
|
|
|
|||
| 150200 | 0.2/0.5/10P10,0.5/0.5/10P10 | 10/20/10,20/20/1 | 0.2/0.5/10P10,0.5/0.5/10P1 | 10/20/10,20/20/10 | 31.5 | 80 |
| ,0.5/10P10/10P10 | 0,20/10/10 | 0,0.5/10P10/10P10 | ,20/15/20 | |||
|
|
|
|
|
|||
| 300400 | 0.2/0.5/10P10,0.5/0.5/10P10 | 10/20/10,20/20/1 | 0.2/0.5/10P10,0.5/0.5/10P1 | 10/20/10,20/20/10 | 45 | 112.5 |
| ,0.5/10P10/10P10 | 0,20/10/10 | 0,0.5/10P10/10P10 | ,20/15/20 | |||
|
|
|
|
|
|||
| 500 | 0.2/0.5/10P10,0.5/0.5/10P10 | 10/20/10,20/20/10 | 0.2/0.5/10P10,0.5/0.5/10P1 | 10/20/15,20/20/15 | 63 | 130 |
| ,0.5/10P10/10P10 | ,20/10/10 | 0,0.5/10P10/10P10 | ,20/15/25 | |||
|
|
|
|
|
|||
| 600 | 0.2/0.5/10P10,0.5/0.5/10P1 | 10/20/15,20/20/1 | 0.2/0.5/10P10,0.5/0.5/10P1 | 10/20/20,20/20/20 | 63 | 160 |
| 0,0.5/10P10/10P10 | 5,20/10/10 | 0,0.5/10P10/10P10 | ,20/15/20 | |||
|
|
|
|
|
|||
| 800 | 0.2/0.5/10P10,0.5/0.5/10P10 | 10/20/15,20/20/15 | 0.2/0.5/10P10,0.5/0.5/10P1 | 10/20/20,20/20/20 | 63 | 160 |
| ,0.5/10P10/10P10 | ,20/10/15 | 0,0.5/10P10/10P10 | ,20/15/20 | |||
|
|
|
|
|
|||
| 1000 ,1200 | 0.2/0.5/10P10,0.5/0.5/10P10 | 10/30/15,30/30/15 | 0.2/0.5/10P10,0.5/0.5/10P1 | 10/30/20,20/30/20 | 80 | 160 |
| ,0.5/10P10/10P10 | ,30/10/15 | 0,0.5/10P10/10P10 | ,30/15/20 | |||
|
|
|
|
|
|||
| 1500 ,1600 | 0.2/0.5/10P10,0.5/0.5/10P10 | 20/30/15,30/30/15 | 0.2/0.5/5P15,0.5/0.5/10P1 | 30/40/20,40/40/20 | 100 | 160 |
| ,0.5/10P10/10P10 | ,30/10/15 | 5,0.5/5P10/5P15 | ,40/15/15 | |||
|
|
|
|
|
|||
| 2000 | 0.2/0.5/10P10,0.5/0.5/10P10 | 20/30/15,30/30/15 | 0.2/0.5/5P15,0.5/0.5/10P1 | 30/60/30,60/60/60 | 100 | 160 |
| ,0.5/10P10/10P10 | ,30/10/15 | 5,0.5/5P10/5P15 | ,60/20/20 | |||
|
|
|
|
|
|||
| 2500 | 0.2/0.5/10P10,0.5/0.5/10P10 | 20/30/20,30/30/20 | 0.2/0.5/5P15,0.5/0.5/10P1 | 30/60/30,60/60/3 | 100 | 160 |
| ,0.5/10P10/10P10 | ,30/10/15 | 5,0.5/5P10/5P15 | 0,60/20/20 | |||
| 3000 ,3150 |
|
|
0.2/0.5/5P15,0.5/0.5/10P1 | 30/60/20,60/60/2 | 100 | 160 |
| 5,0.5/5P10/5P15 | ວັນທີ 0,60/15/15 | |||||
| ປະເພດ | ໃຫ້ຄະແນນປັດຈຸບັນຕົ້ນຕໍ | ຫ້ອງຮຽນຄວາມຖືກຕ້ອງ | ໃຫ້ຄະແນນຜົນຜະລິດ | ກະແສຄວາມຮ້ອນ 1 ວິນາທີ | ປະຈຸບັນໄດນາມິກ | ||
| 0.2 | 0.5 | 10 ປ | |||||
| LZZBJ9-10C5 | 5-300 | 0.2/0.5,0.2/10P20,0.5/10P20 | 20 | 40 | 40 | 0.5 | 1.25 |
| 400 | 1 | 2.5 | |||||
| 500 | 1.5 | 3.75 | |||||
| 600 | 0.2/0.5,0.2/10P25,0.5/10P25 | 20 | 40 | 40 | 2 | 5 | |
| 800 | 3 | 7.5 | |||||
| 1000 | 4 | 10 | |||||
| 1200 | 0.2/0.5,0.2/10P30,0.5/10P30 | 40 | 40 | 40 | 5 | 12.5 | |
| 1250 | |||||||
| 1500 | 7.5 | 18.75 | |||||
| 1600 | |||||||
| 2000 | 21 | 52.5 | |||||
| 2500 | 31.5 | 80 | |||||
| 3000 | 31.5 | 80 | |||||
| 3150 | |||||||
